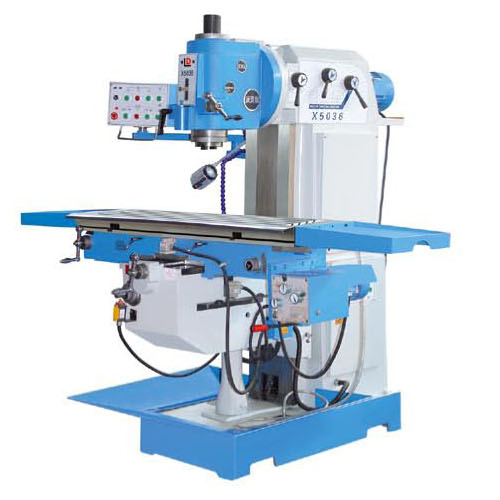

X5036B立式铣床
联系电话：0632-3951282
欢迎访问山东鲁迪重工机械有限公司官方网站！
0632-3951282
tzludi@126.com
workbench X, 丫 are automatically feed Z is electric lift
X, 丫，Z three rail VHF hardening
X, 丫，Z three into rail centralized lubrication
主要技术参数 | Specification | X5036B |
主轴内孔锥度(mm) | Taper of spindle bore | 7 : 24 ISO 50 |
主轴行程(mm) | Spindle stroke | 80 |
主轴端面至工作台距离(mm) | Distance spindle nose to table | 60-540 |
主轴孔中心至悬梁平面距离(mm) | Spindle center to hang himself from the plane | 325 |
主轴转速范围(rpm) | Spindle speed range | C12级）60-1700 |
工作台尺寸(mm) | Table size | 1500x360 |
工作台行程(mm) | Table travel | 1000x320 |
电动机功率(kw) | Motor Power | 4(5)/0.75/l.l/0.09 |
夕卜型尺寸(mm) | Dimensions | 2200x2600x1880 |
净重/毛重(kg) | NW/GW | 2400/2600 |
